Emergency Light / Exit Light

EHL 101-LED LED UFO Emergency Light

Super bright Green LED 5mm Ø

EMERGENCY LUMINANCE : 100 lm/w

CHARGER : Hybrid controlled charger

PROTECTION : Low volt cut-off to prevent battery over discharge Incoming AC fuse, Circuit Protection Fuse and Battery DC fuse Tropical climate protection coating on hybrid control circuit

CONSTRUCTION : Electrode galvanized sheet steel with epoxy powder coating

COMPLIANCE : CP 19-2000, SS263 : Part 2, IEC 598-2-22, AS 2293

DIMENSION : 97mm(L) x 97mm(W) x 102mm(H)

WARRANTY : 1 Year

PDF SPECS – CLICK HERE

$41.00$56.00

3 payments at 0% interest with Atome Logo
Available in when you proceed to Checkout page or Click here.

For delivery of your products. Please find shipping option in Cart Checkout.

To find out more about our shipping fees. Please read brief on Shipping Policy.

You can make your reservation order from us without paying a single cent until we confirm your order and stock availability.
A follow up call or WhatsApp message (within 1-2 Working days) to inform you of your order and advise you on the payment method.
All prices you see are NETT with NO mark up.
Order with confidence!

Products Banner

Emergency Luminaire



Emergency Luminaire

Emergency Luminaire

Emergency Luminaire

EHL 101-LED

is designed with low EMI and specially equipped with a customized proprietary Hybrid IC for higher reliability and greater efficiency in operation.
Small and aesthetically in design. Easy installation. Snap in and flush mount firmly onto ceiling/panel.
It stays inconspicuously and maintains the original interior decoration of the premises.
Suitable for Banks, Computer Rooms, Offices, Cinemas, Hotels, Shops, Supermarkets, etc

Recessed Version is default.
Surface mount casing sold separately.

Input Voltage:230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others
Battery:High temp rated Nickel Cadmium cells 2.4V 1.6Ah or others
Lamp Used:1 W SMT NICHIA White LED
Rated Period:> 4 hrs or others
Mode:Non-maintained
Operation Temperature:ta 25 °C
Power Consumption:2.8VA
Charge Monitor:Super bright Green LED 5mm Ø
Recharge Period:16 ~ 24 hrs
Emergency Luminance:100 Im
Electromagnetic Field:6.9m gause @ 0.1m
Charger:Hybrid controlled charger
Protection:Low volt cut-off to prevent battery over discharge. Incoming AC fuse, Circuit Protection Fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit

EHL-101-LED-1

Construction:Moulded Fire Retardant PC + UV housing.

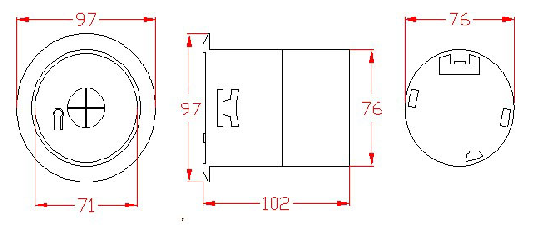

Dimension:97mm(L) x 97mm(W) x 102mm(H)
Packing:One unit per carton
Carton/Dimension:Double wall corrugated / 110mm(L) x 110mm(W) x 120mm(H)
Compliance:CP 19-2000, SS263 : Part 2, IEC 598-2-22, AS 2293
Warranty:1 Year
